Introduction:
Chick cages are producing by low carbon steel wire, it can be arranged different according to different requirements
Chick cage 's lifespan from 5 years up to 20 years, it depends on material of manufacturer using and climate of your countries, Our economical cage is using in our own farm for 8 years in China now and our quality chick cage is using in our African such as Nigerian customers' farm for 10 years now.
If you are just starting, please click " important advice on rearing brooder/pullets/baby egg laying chicken" to learn more help feeding knowledge to make your poultry farm working effective.
Please let us know which country are you in? What is your farm plan? how many chicken do you have ? In African countries, we have branch and warehouse. Our sales department will give you helpful advice on your farm and feeding, quotation and house design.
Features:
Special Advantages Of Qunkun Chicken Cage System
1. Nipple drinkers and manual drinker: stainless steel nipple drinkers, The professional poultry water pipe is made of good PVC material Guaranty is more than 15 years, without leakag and long service life.
2.The silver white feeding trough length is 2m/pc, made from concentrate pure PVC, Loading capacity is more than 60kg/pc
3.Excellent farm design and build experience for your special layout design requirements, IT IS FOR FREE !
4.Easy to install and operate - No need professional technicians service, we will provide the installing videos for your reference.and we will teach you step by step.
Specifications:
Chick cage, according to different type and capacity , the specifications are as follows:
| The specifications of chick cages | ||||||
| Item No. | Type | Size (L x W x H) | Size of the nest | Nest per Set | Chick per Nest | Chick per Set |
| H Type | 3 Tiers 2 doors | 1.4x0.7x1.2m | 0.7*0.7*0.3m | 6 | 19 | 114 |
| H Type | 4 Tiers 2 doors | 1.4x0.7x1.65m | 0.7*0.7*0.3m | 8 | 19 | 152 |
| A Type | 3 Tiers 3 doors | 1.95x2.4x1.4m | 0.65*0.5*0.35m | 18 | 12 | 216 |
| A type | 3 Tiers 4 doors | 2.15*2.4*1.46m | 0.54*0.5*0.35m | 24 | 10 | 240 |
Notice : we can also custom made as your requirements
Note: Special size and specifications can be made according to customers requires.
Technology:
| Material | High quality low carton steel wire (Q195/Q235) |
| Surface Treatment And Service Life | Cold galvanized chicken cage (6-year to 10-year) |
| Hot galvanized chicken cage (20-year to 30-year) | |
| Green PVC coated chicken cage (20-year to 30-year) | |
| Accessories | Pvc feeding trough,nipple drinker,water pipe,water tank,reducing valve,cage frame, water tank frame, pliers and another fittings |
| Connection: | welding |

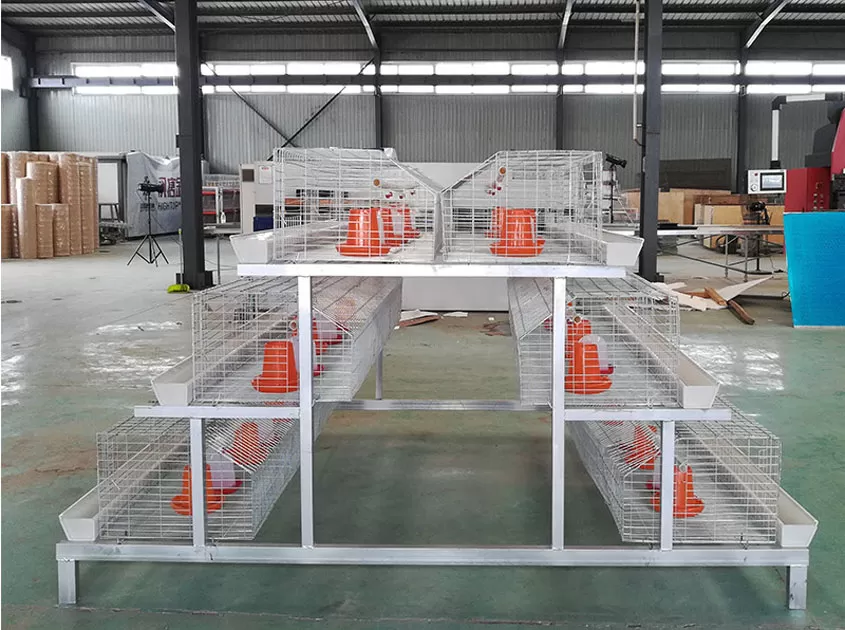

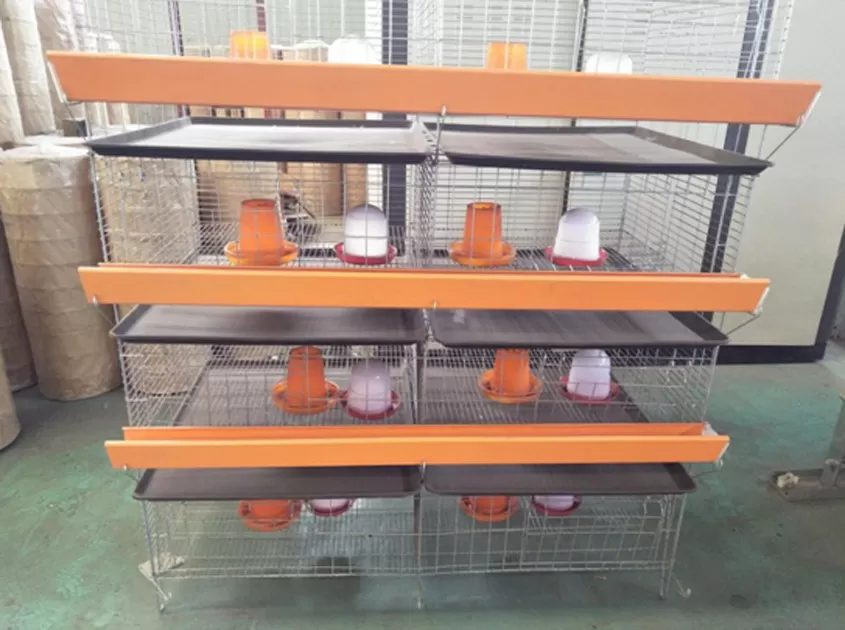

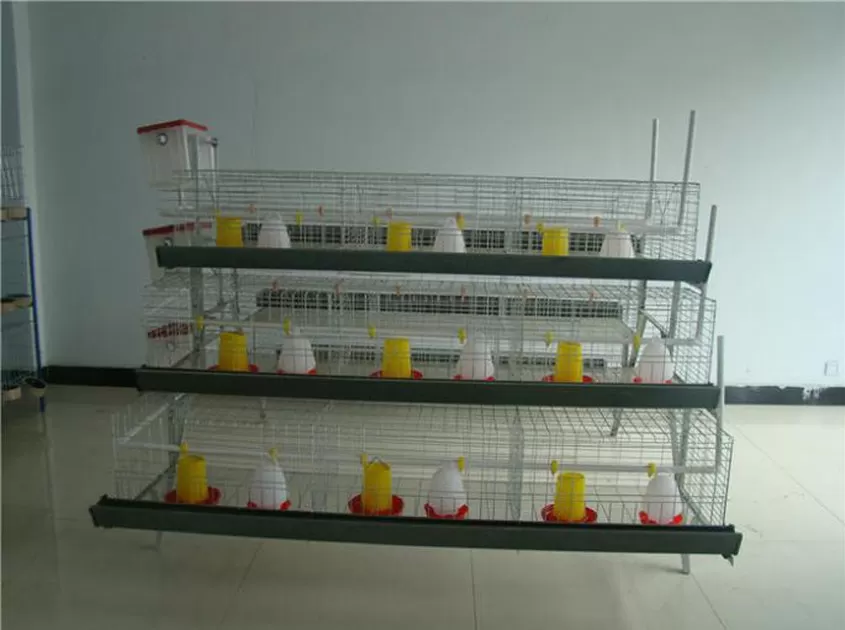

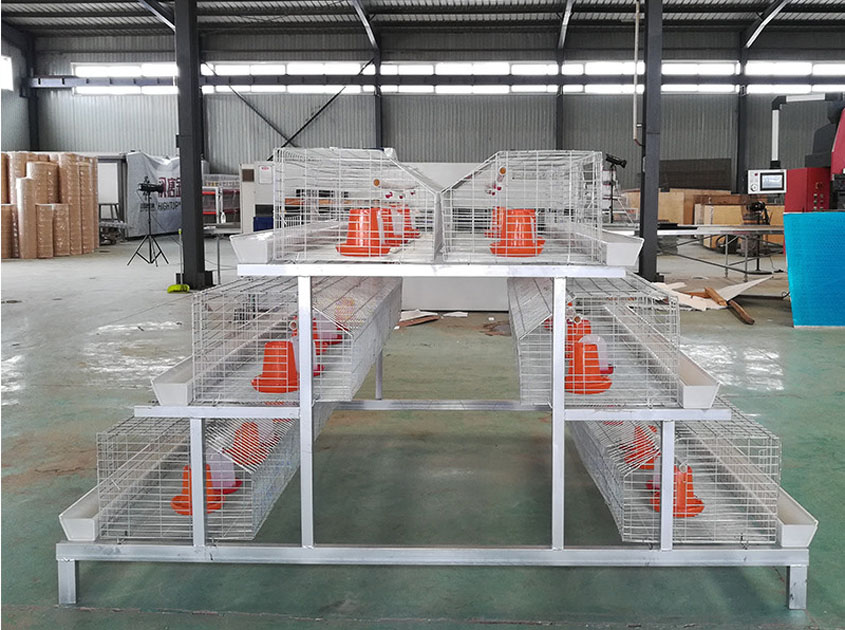

Drawing and Gallery:
Product Name: Chick Chicken Cages
