Introduction:
Field fencing is also a kind of popular fence for fields or agriculture, also called farm fence or grassland fence. It is woven by high tensile hot dipped galvanized with zinc coating above 200g/m2. It is a type of very economical fence for the farm, orchard, fields, grasslands, forest zone …etc. The formation of the field fencing is automatic twist plait by the line wire and the cross wire. So the fencing mesh is knotted. And the spacing between the line wire is different, smaller spacing in the bottom of mesh panel, then the spacing become much more bigger than the the bottom one. To design like that is to protect the little rodents or animals from getting through.
Field fence can be woven with different types of knots: fixed knots, hinge joint knots or other custom patterns.

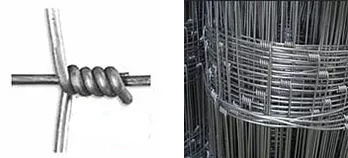

Hinge joint fence is the most common used type with economic benefits. Different form above weaving method, hinge joint is formed by wrapping the vertical wires around horizontal wires at each intersection. This spring shaped knot will provide the most elasticity to absorb the harshest impact energy as well spring back into its original shape.

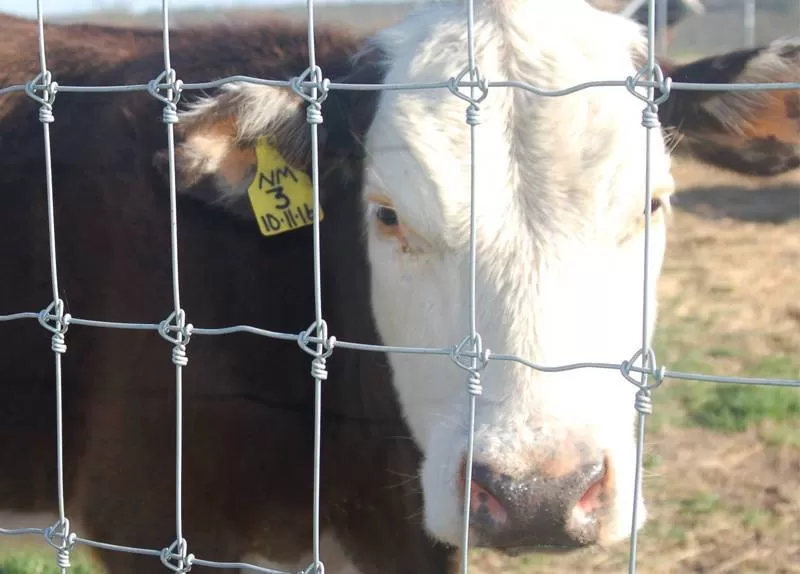

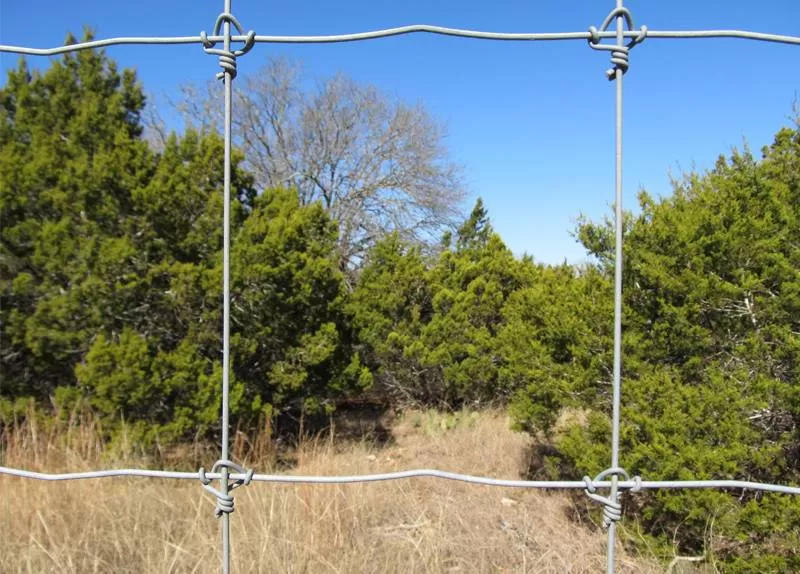

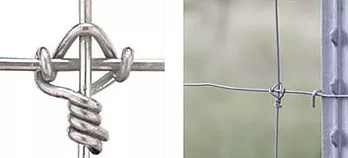

Fixed knot fence is the strongest fence type with increased post spacing, highest visibility and low maintenance – which takes advantage of fixed knots formed by using separate wires to tie the continuous horizontal and vertical wires together without sliding.
Features:
Stronger & Last longer
The higher carbon contents, the higher strength the fence wire will own. According the relative test, the high tensile fences are approximately twice the strength as low carbon field fence - that means they are stronger with a longer lifespan.
Need fewer post
High tensile fence features higher breaking strength to be installed with bigger post spacing up to 16.5 feet, while the post spacing of low carbon wire fence is about 8 to 10 feet. So there are fewer fence posts are needed.
Low maintenance
Once installed properly, only low even free maintenance is needed – that is because high tensile fences are not easy to sag and always retains tight over years, therefore there is no need of additional re-stretching.
Cost effective
Fewer posts and smaller diameters offer a big saving of cost and result in a competitive price. Additional, the high tensile fences are considered to be more safer to livestock, looks neater and easier to handle and install
Woven Type

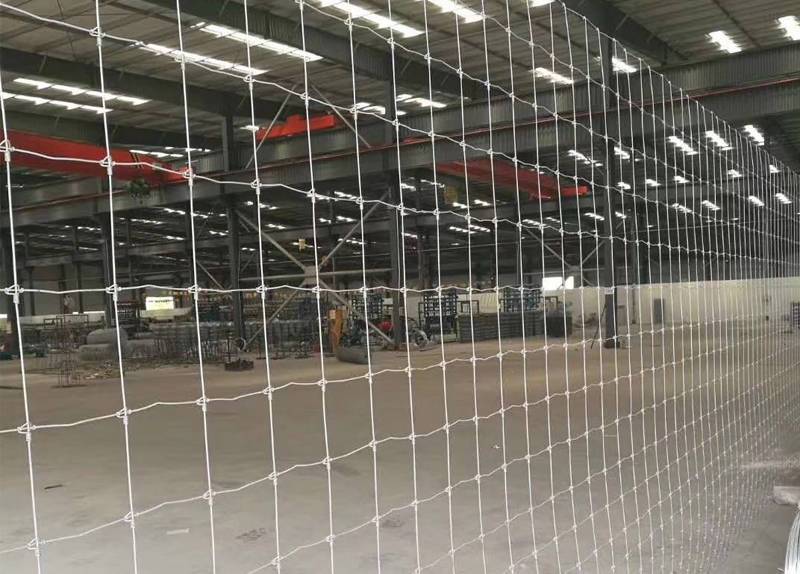

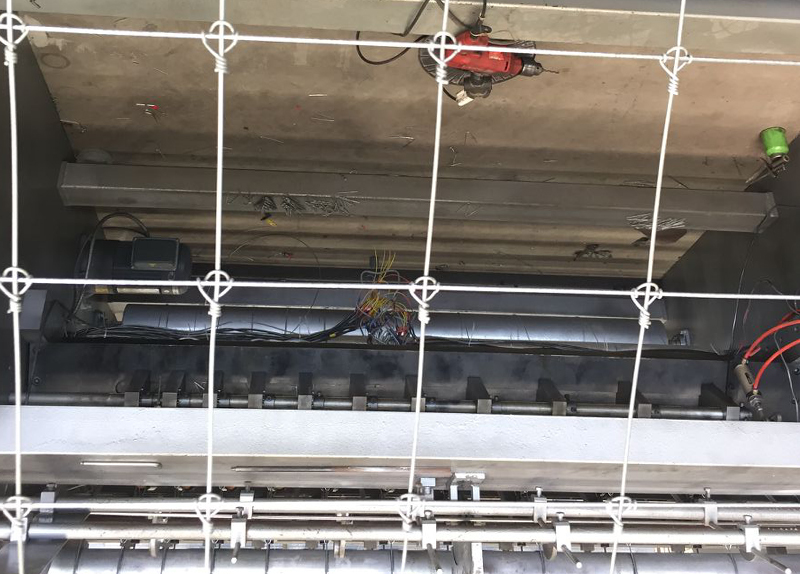

The field fencing is fully automatic machine production. The formation of the fence mesh is woven type. It is the twist plait by the line wire and the cross wire. It saved a lot of labor and reduce labor intensity. At last it made a flat surface, firm structure of the field fencing.
Simple Structure
The structure of the field fencing is very simple. So it has a very short production period and very easy to maintain. So with small size and light weight, it is convenient during the packing and loading on the container.
Specifications:
| Fixed knotted Field fence | |||||
| Item | Horizontal wire number | Inside wire gauge | Top bottom wire gauge | Stay spacing | Fence height |
| FKF-1 | 23 | 12.5 | 10.5 | 3", 6" or 12" | 120" |
| FKF-2 | 20 | 12.5 | 10.5 | 3", 6" or 12" | 96" |
| FKF-3 | 17 | 12.5 | 10.5 | 3", 6" or 12" | 75" |
| FKF-4 | 15 | 12.5 | 10.5 | 3", 6" or 12" | 61" |
| FKF-5 | 13 | 12.5 | 10.5 | 3", 6" or 12" | 74" |
| FKF-6 | 13 | 12.5 | 12.5 | 3", 6" or 12" | 48" |
| FKF-7 | 9 | 12.5 | 12.5 | 3", 6" or 12" | 49" |
| FKF-8 | 16 | 12.5 | 12.5 | 3", 6" or 12" | 90" |
| FKF-9 | 14 | 12.5 | 12.5 | 3", 6" or 12" | 78" |
| FKF-10 | 10 | 12.5 | 12.5 | 3", 6" or 12" | 47" |
| FKF-11 | 17 | 12.5 | 12.5 | 3", 6" or 12" | 74" |
| FKF-12 | 13 | 12.5 | 12.5 | 3", 6" or 12" | 74" |
| FKF-13 | 11 | 12.5 | 12.5 | 3", 6" or 12" | 60" |
| FKF-14 | 8 | 12.5 | 12.5 | 3", 6" or 12" | 36" |
| FKF-15 | 8 | 12.5 | 12.5 | 3", 6" or 12" | 31" |
| FKF-16 | 7 | 12.5 | 12.5 | 3", 6" or 12" | 36" |
Note: Special size and specifications can be made according to customers requires.
Technology:

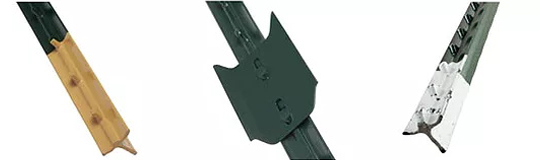

Posts
The field fencing post is to use the angle steel, to make holes on the angle steel, which is used to tie the fence panel with the post. And it can use the wooden stake to replace the angle steel. To fix the post and the fence panel together is using the galvanized wire.
All in all, the formation of the field fencing is not complex, and it is also very economical and save the production cost. It is a quite good choice to choose the field fencing.
Classification of fence

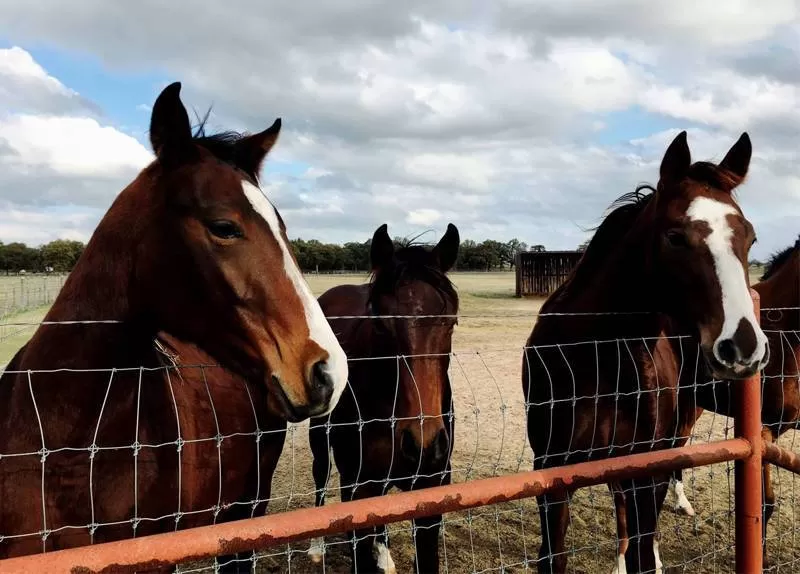

Agricultural fence (such as horse fencing, livestock panel fence);

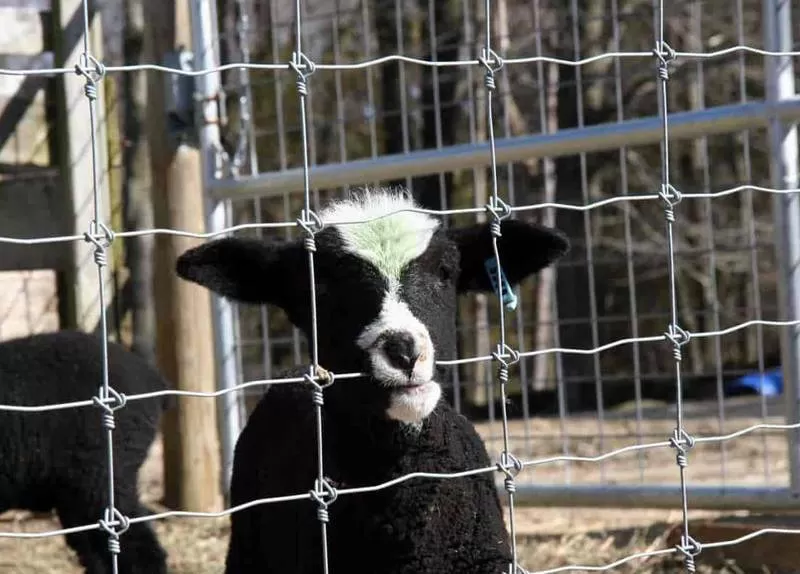

Ranch fence (such as sheep fencing, goat fence, deer fence and cattle fence);
Grassland fence (such as border fence).

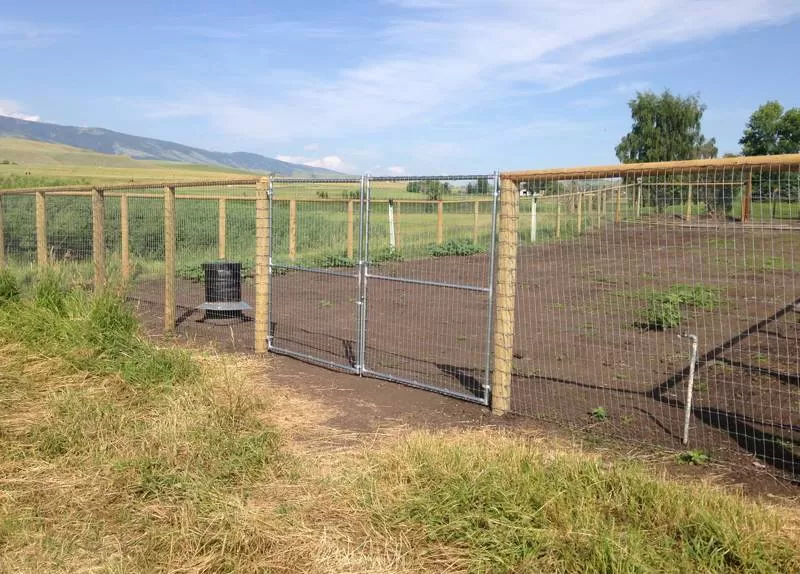

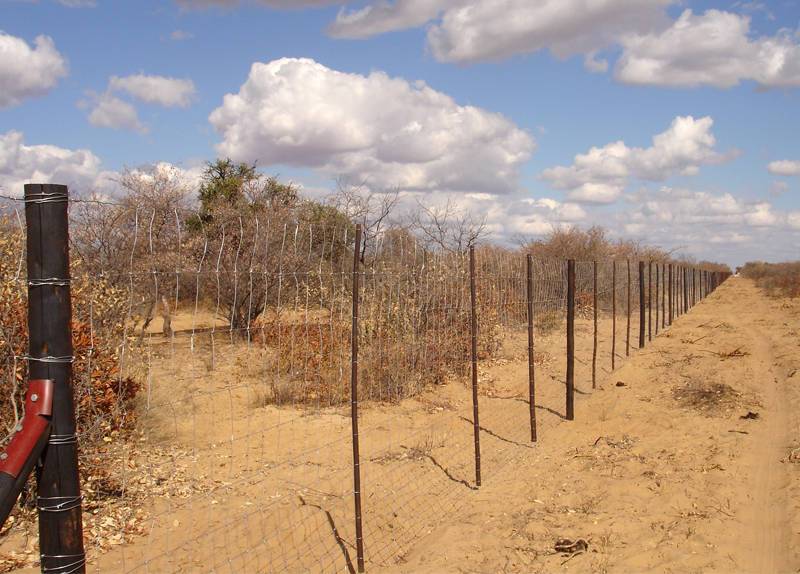

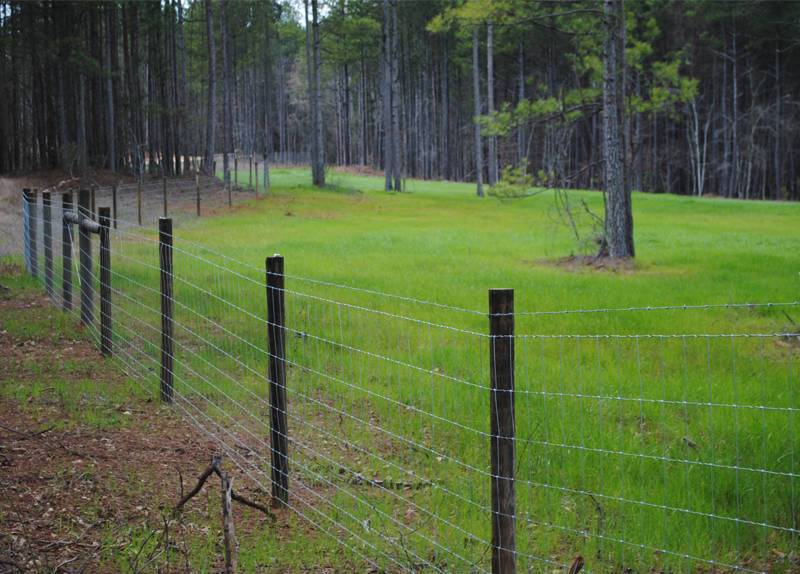

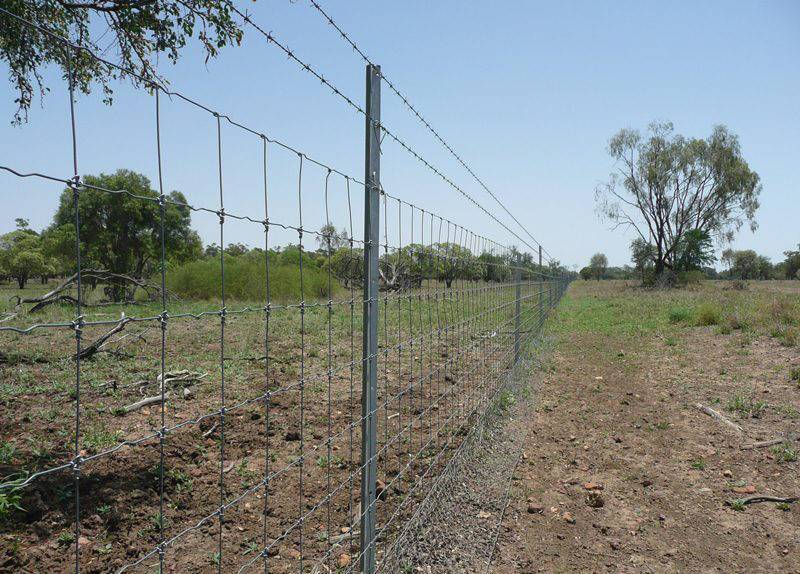

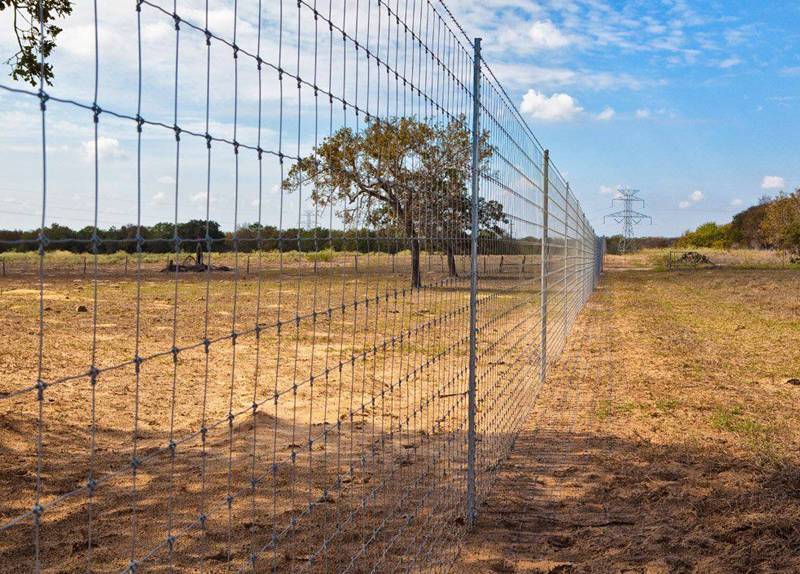

Field fence application

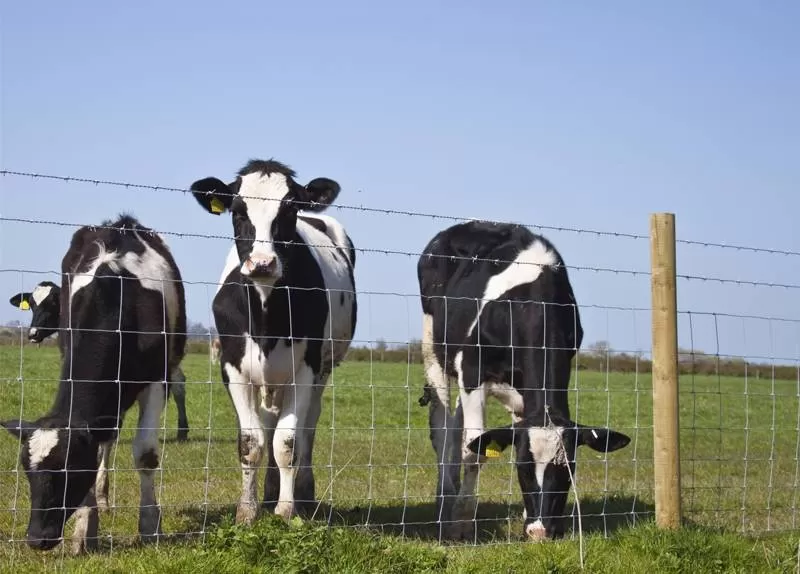

Field fence has many widely range uses almost covering each corners in our lives. Field fences are mainly used for barriers in ranch construction, grazing and feeding of animals in agriculture farm and grassland fence;
Used for protection of natural environment.
Specifications of LINKLAND™ Farm Fence
Hinge joint filed fence
Materials: zinc-aluminium alloy wire (Galfan wire) or galvanized steel wire, both high tensile wire.

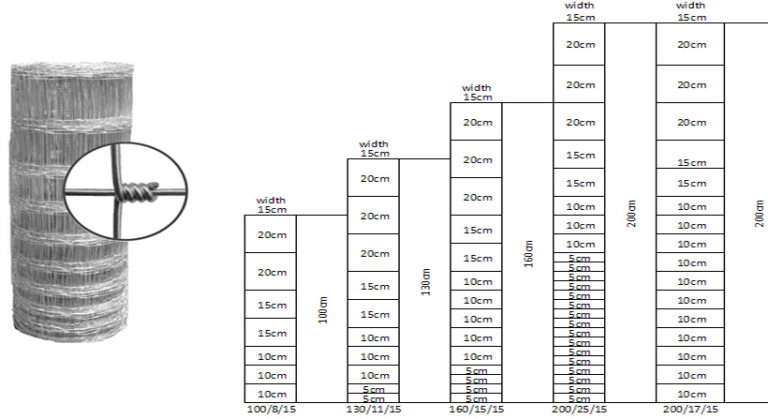

| Hinge Joint Field fence (cm) | 100/8/15 | 130/11/15 | 160/15/15 | 200/25/15 | 200/17/15 | ||
| Height (cm) | 100 | 130 | 160 | 200 | 200 | ||
| Horizontal wires number | 8 | 11 | 15 | 25 | 17 | ||
| Roll Length (m) | 50 | 50 | 50 | 50 | 50 | ||
| Ø wire 2.5mm; Ø top and bottom wire 2.5mm | mesh opening width (cm) | 15, 30 | 15, 30 | 15, 30 | 15, 30 | 15, 30 | |
| Roll weight (kg) | 17 | 26 | 35 | 52 | 40 | ||
| Note: the following sizes also can be manufactured by your order : 200/22/15; 200/17/15; 180/24/15; 160/23/15; 150/13/15; 140/22/15; 140/11/15 | |||||||
Fixed knot filed fence
Materials:zinc-aluminium alloy wire (Galfan wire) or galvanized steel wire ,both hightensile wire.
Drawing and Gallery:
Product Name: Farm Fence . Field Fence
