Molybdenum Wire Mesh

Molybdenum Wire Mesh is made of pure molybdenum wires or alloy wires. Molybdenum wire mesh has heat-conductivity and corrosion resistance.

Molybdenum wire mesh has high strength and low elongation, excellent electric-conductivity, heat-conducting property. It can also resist corrosion, acid, alkaline, oxidation and other harsh environment. Molybdenum wire mesh can be popularly used in high-temperature field such as furnace, petroleum, chemical, food, medicine, machinery and other industries for filtering and sieving use.

INQUIRY

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Molybdenum Wire Mesh

Introduction
Features
Specifications
Technology
Drawing and Gallery
Inquiry

Introduction:

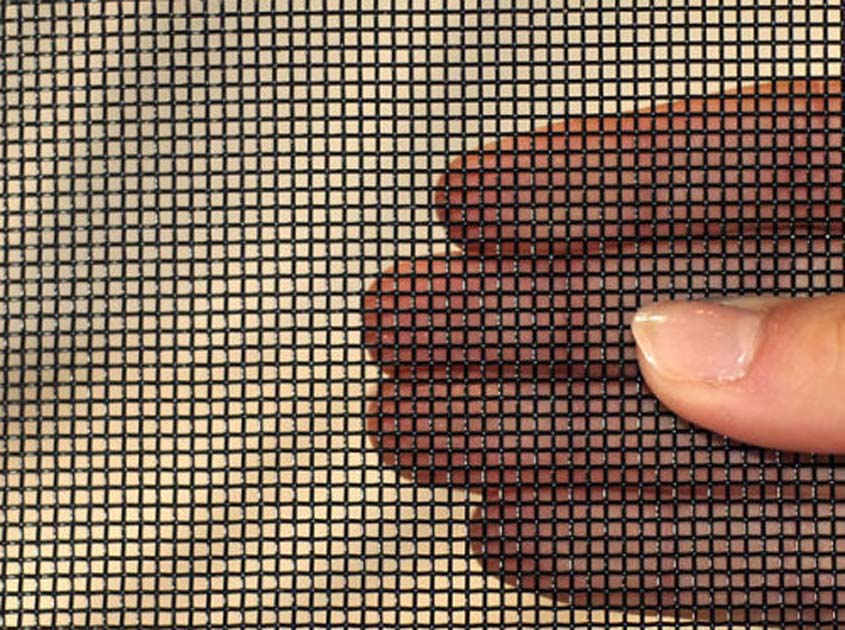

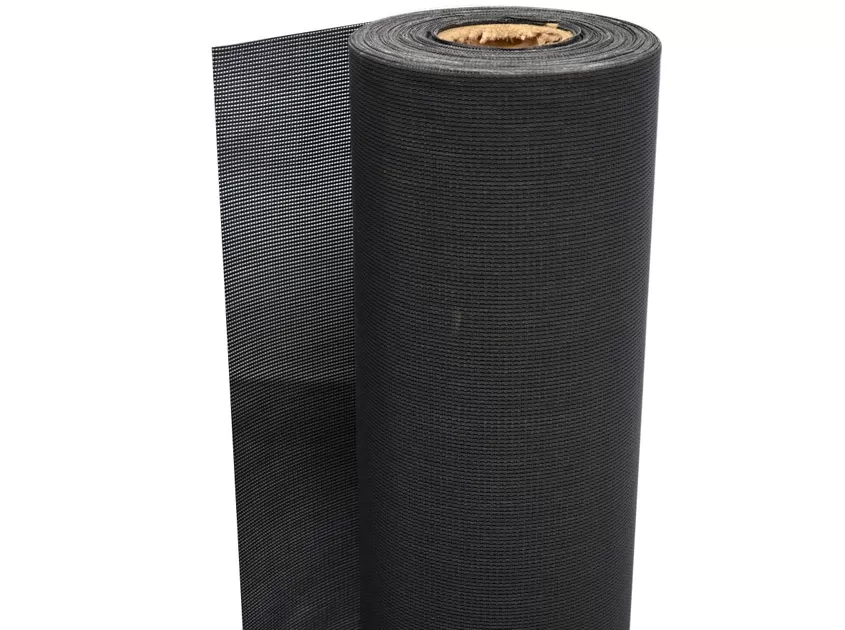

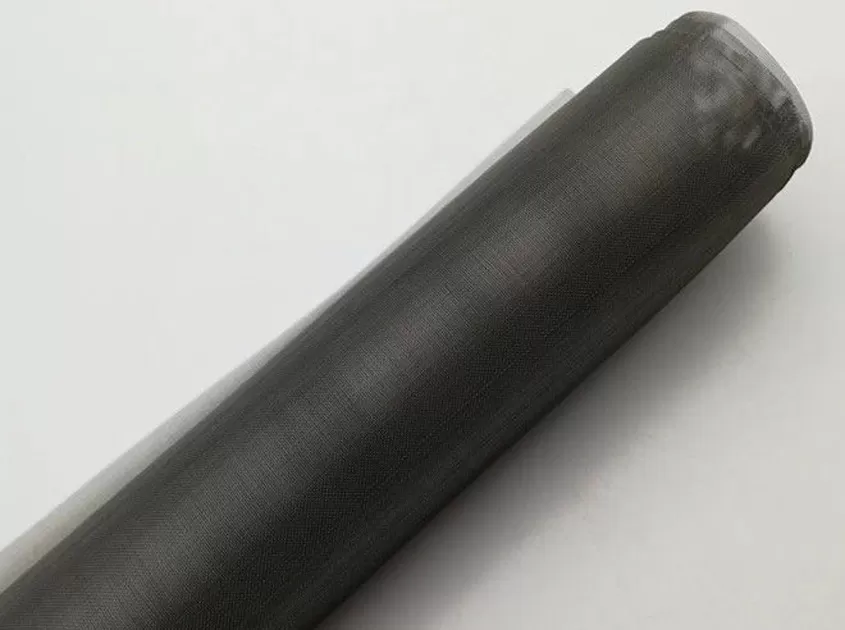

Molybdenum Wire Mesh is a type of woven wire mesh, which is made of pure molybdenum wires or alloy wires. According to the weaving patterns, molybdenum wire mesh has plain weave, twill weave, dutch weave patterns with square and rectangular shaped holes on surface.

Features of Molybdenum Wire Mesh:

High tensile strength, Low elongation, Acid and alkaline resistant, Corrosion resistant, High temperature resistant, Good electricity-conductivity, Lightweight, Various hole shapes, Excellent filtering performance

Applications of Molybdenum Wire Mesh:

Molybdenum wire mesh has good corrosion resistance, heat-conductivity and is widely used in high temperature field for sieving and filtering. The main application fields of molybdenum wire mesh are: Aerospace, Nuclear power filed, Electro-vacuum industry, Glass furnaces, Petroleum, Oil and gas industry, New energy industries, Food processing industry.

Features:

1. High tensile strength.

2. Low elongation.

3. Acid and alkaline resistant.

4. Corrosion resistant.

5. High temperature resistant.

6. Good electricity-conductivity.

7. Lightweight.

8. Various hole shapes.

9. Excellent filtering performance.

Specifications:

Mesh/Inch	Wire Diameter (mm)	Opening (mm)	Opening Area %	Weight kg/m²	Mesh/Inch	Wire Diameter (mm)	Opening (mm)	Opening Area %	Weight kg/m²
1	4.87	20.523	68%	15.40	40	0.25	0.385	37%	1.62
2	3.04	9.652	58%	12.00	40	0.23	0.401	40%	1.37
2	2.60	10.033	62%	8.78	40	0.22	0.415	43%	1.25
3	2.00	6.467	58%	7.80	40	0.19	0.445	49%	0.93
3	1.60	6.867	66%	4.99	50	0.19	0.318	39%	1.17
4	1.60	4.750	56%	6.65	50	0.15	0.335	49%	0.73
4	1.20	5.150	66%	3.74	50	0.20	0.478	89%	1.29
5	1.20	3.880	58%	4.67	60	0.15	0.273	42%	0.87
5	1.00	4.080	65%	3.24	60	0.16	0.263	39%	0.99
6	1.20	3.033	51%	5.61	70	0.12	0.243	45%	0.65
6	0.90	3.333	62%	3.15	80	0.12	0.198	39%	0.74
8	0.61	2.565	65%	1.93	90	0.12	0.162	33%	0.84
10	0.50	2.032	64%	1.62	100	0.10	0.154	37%	0.64
10	0.45	2.083	67%	1.31	100	0.076	0.177	49%	0.37
12	0.50	1.609	58%	1.94	120	0.09	0.122	33%	0.63
14	0.42	1.397	59%	1.60	120	0.08	0.132	39%	0.49
16	0.38	1.212	58%	1.50	140	0.06	0.121	45%	0.32
18	0.28	1.317	65%	0.91	150	0.065	0.104	38%	0.41
20	0.40	0.870	47%	2.07	180	0.06	0.081	33%	0.42
20	0.32	0.955	57%	1.33	180	0.05	0.091	42%	0.29
24	0.28	0.784	55%	1.22	200	0.05	0.077	37%	0.32
24	0.23	0.824	61%	0.82	250	0.04	0.062	37%	0.25
26	0.25	0.723	55%	1.32	270	0.028	0.066	49%	0.13
28	0.27	0.633	49%	1.32	280	0.03	0.061	45%	0.16
28	0.23	0.673	55%	0.96	300	0.04	0.045	28%	0.31
30	0.23	0.613	52%	1.03	325	0.035	0.043	30%	0.25
32	0.30	0.494	39%	1.87	400	0.038	0.038	37%	0.16
