Introduction:
Dutch Weave Stainless Steel Wire Mesh , as a type of filter screen involving a special weaving process, Dutch Weave Stainless Steel Wire Mesh has different warp and weft mesh numbers. Ordinary and common Dutch Weave Stainless Steel Wire Mesh has more weft numbers than warp numbers and thicker warp steel wire than weft steel wire, therefore being called Dutch Weave Mesh. Dutch Weave Stainless Steel Wire Mesh has a filter precision that ordinary stainless square-hole mesh cannot have and reach. Dutch Weave Stainless Steel Wire Mesh is also called Dutch Cloth, Dense Mesh and Hole-less Mesh. Its weft wires are based on the close arrangement of steel wires, generally used in precision screening and oil filtering. Dutch Weave Stainless Steel Wire Mesh with a large mesh number can filter oil only in a pressure environment. Dutch Weave Stainless Steel Wire Mesh is classified into plain weave and twill weave.
Weave Stainless Steel Wire Mesh is great contrast to the density of wire diameter in warp and weft direction, so the mesh thickness, filter rating and service life has obvious enhancement compared to square hole mesh. Its filtering precision cannot be achieved by square hole mesh.
Dutch weave stainless steel wire mesh is mainly used for gas, liquid filtration and other medium’s separation. Widely used in precision pressure filter, fuel filter, vacuum filter. Can be filter material and applied to aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food, scientific research, conveying and many other industries.
Features:
1. Excellent resistance to the rust and corrosion.
2. Resistance to the acid and alkali.
3. Resistance to the chemical and harsh weather.
4. High strength
5. Better filtering performance.
6. Higher tensile strength.
7. Can be used for filtering ultra-fine products.
8. Much more stable structure.
Specifications:
Specification of Plain Dutch Weave Stainless Steel Wire Mesh
| Mesh | Wire Diameter (Inch) | Absolute Filtration Fineness (µm) | Nominal Filtration Fineness (µm) |
| 8X85 | .014X.0126 | 318 – 340 | 250 – 255 |
| 12X64 | .024X.0165 | 270 – 285 | 200 – 205 |
| 14X88 | .020X.013 | 225 – 245 | 150 – 155 |
| 20X150 | .0098X.007 | 155 – 165 | 100 – 105 |
| 24X100 | .015X.010 | 115 – 125 | 80 – 85 |
| 30X150 | .009X.007 | 95 – 100 | 65 – 70 |
| 40X200 | .007X.0055 | 65 – 70 | 55 – 60 |
| 50X250 | .0055X.0045 | 55 – 60 | 40 – 45 |
| 80X400 | .0049X.0028 | 43 – 48 | 35 – 40 |
Specification of Twill Dutch Weave Stainless Steel Wire Mesh
| Mesh | Wire Dia. (Inch) | Absolute Filtration Fineness (µm) | Nominal Filtration Fineness (µm) |
| 20 x 250 | .0098 x .0079 | 110-120 | 98-105 |
| 30 x 360 | .0098 x .0060 | 90-100 | 80-84 |
| 40 x 560 | .0070 x .0040 | 70-75 | 47-52 |
| 120 x 400 | .0040 x .0025 | 50-55 | 37-43 |
| 120 x 160 | .0040 x .0025 | 40-45 | 28-32 |
| 80 x 700 | .0040 x .0030 | 35-40 | 24-26 |
| 200 x 600 | .0024 x .0018 | 28-32 | 19-21 |
| 165 x 800 | .0028 x .0020 | 24-26 | 14-16 |
| 165 x 1400 | .0028 x .0016 | 16-18 | 9-11 |
| 200 x 1400 | .0028 x .0016 | 12-14 | 5-6 |
| 250 x 1400 | .0022 x .0016 | 11-12 | 3-4 |
| 325 x 2300 | .0015 x .0010 | 8-9 | 2-3 |
Note: Special size and specifications can be made according to customers requires.
Technology:
Material: SUS302,304,316,316L
Property: Acid-resisting, alkali-resisting, high temperature resisting, strong tension and good abrasion performance. Dutch weave wire mesh has advantage of stable, fine and high precision filtering performance.

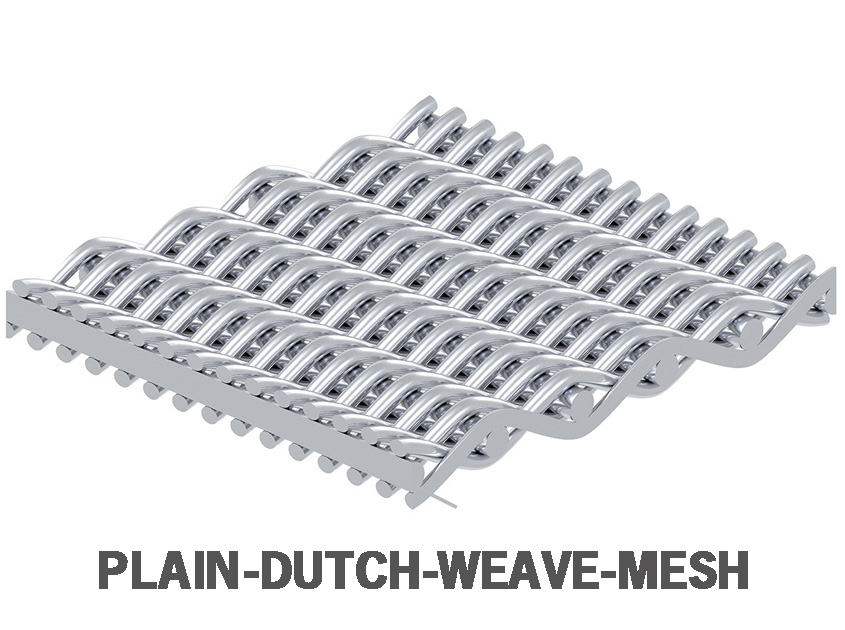

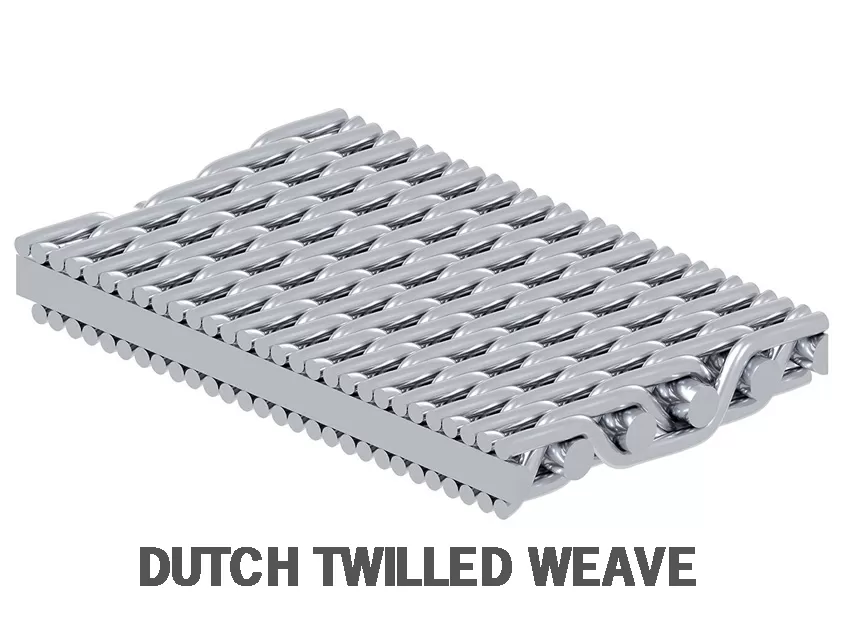

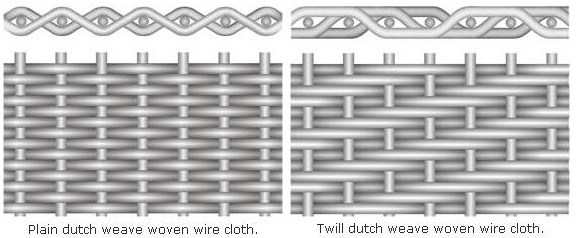

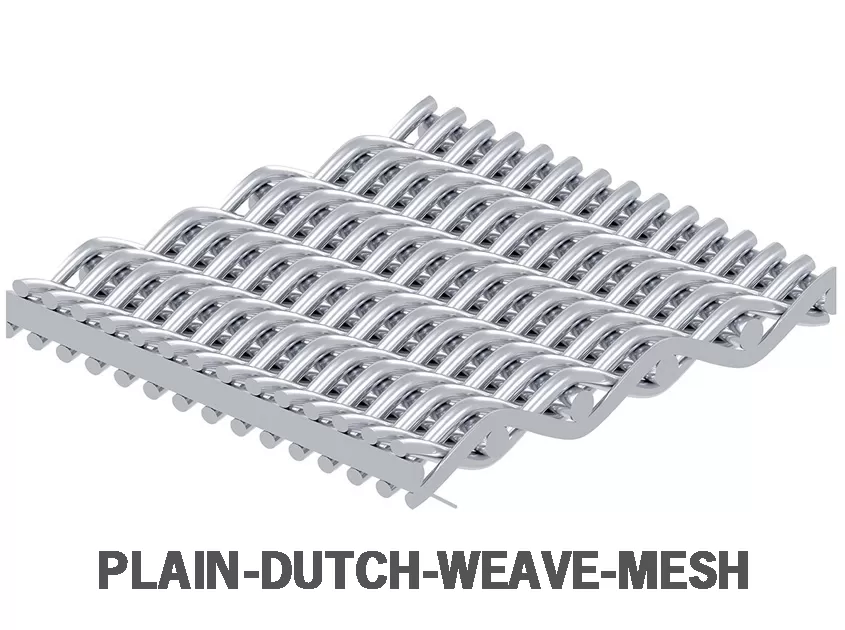

Weave Pattern: Plain dutch weave stainless steel wire mesh(Plain-Dutch), Twill dutch weave stainless steel wire mesh(Twill-Dutch)

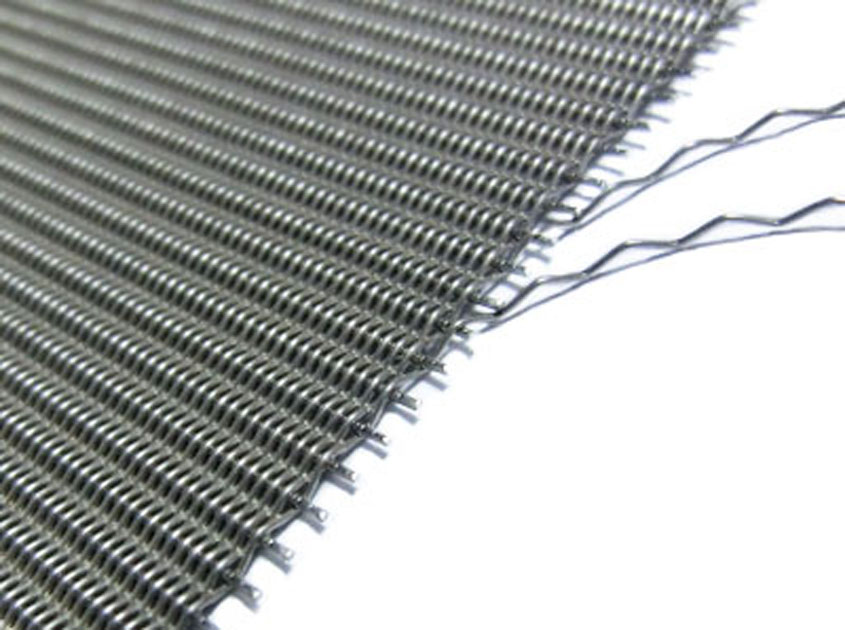

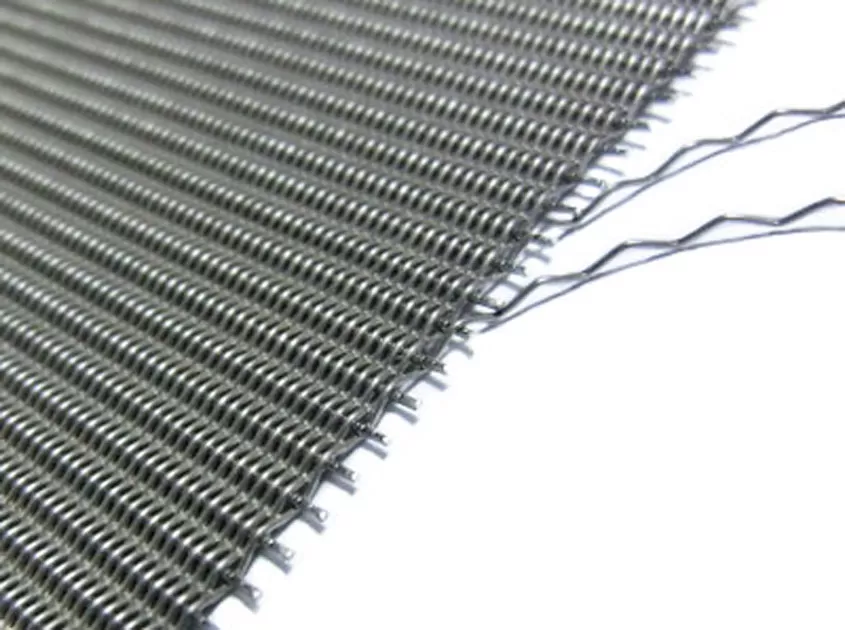

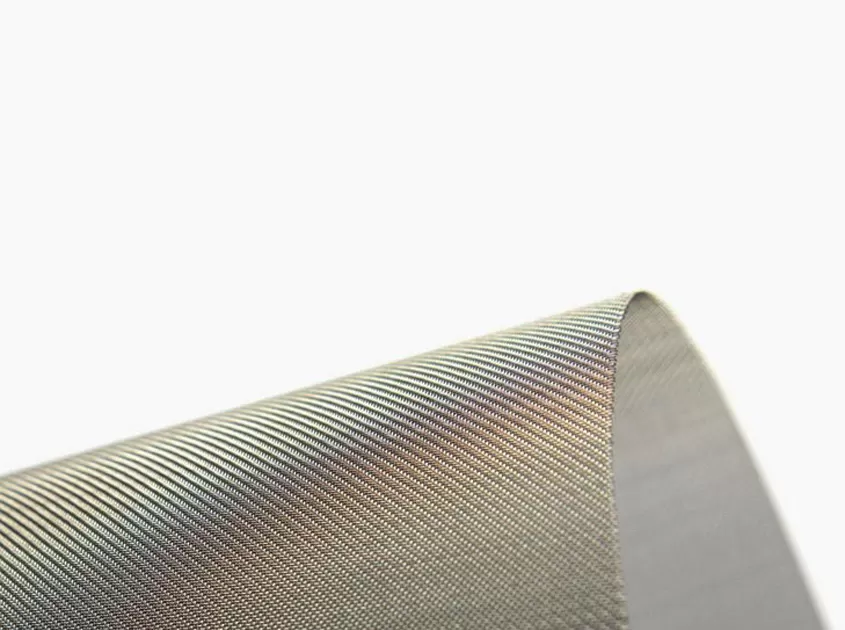

Drawing and Gallery:
Product Name: Dutch Weave Stainless Steel Wire Mesh
