Pure Nickel Wire Mesh

The nickel is a sliver color metal. According to the purity, the nickel has different material types, such as the N2, N4, N6 and N8. Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. Nickel woven wire mesh features excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, wear resistance. Nickel wire mesh or low-alloy nickel woven wire mesh is useful in chemical processing because of its resistance to various chemicals including acid, alkali. It is also useful in the electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.

INQUIRY

Our Advantages:

Supply samples for FREE

Free Design

Quality Guaranteed By SGS

Fast reply within 24 hours

Reasonable price directly from Our own Factory

Detailed Information For Pure Nickel Wire Mesh

Introduction
Features
Specifications
Technology
Drawing and Gallery
Inquiry

Introduction:

The nickel is a sliver color metal. According to the purity, the nickel has different material types, such as the N2, N4, N6 and N8. Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. Nickel wire mesh features excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, wear resistance. Nickel wire mesh or low-alloy nickel wire mesh is useful in chemical processing because of its resistance to various chemicals including acid, alkali. It is also useful in the electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.

Features of Pure Nickel Wire Mesh:

Nickel wire mesh features excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, wear resistance.

Applications of Pure Nickel Wire Mesh:

The nickel woven wire mesh is widely used as the filtration materials in the mining, oil, chemical, food, pharmaceutical, machine and other fields. The nickel woven wire mesh has high electrical conductivity, so it can be used in the electronics. The nickel woven wire mesh also can be used for battery production.

Features:

1. Chemical resistance, acid and alkali resistance.

2. High electrical conductivity.

3. Thermal conductivity and ductility.

4. Corrosion resistance.

5. Heat resistance.

6. Wear resistance.

Specifications:

Specification of nickel wire mesh Grade Nickel 200:

Mesh count	Wire Diameter (in.)	Type Weave	Width Opening (in.)	Open Area (%)
8 × 8	0.0280	Plain	0.0970	60.2
10 × 10	0.020	Plain	0.080	64%
12 × 12	0.0140	Plain	0.0693	69.2
16 × 16	0.0120	Plain	0.0505	65.3
16 × 16	0.0140	Plain	0.0485	60.2
20 × 20	0.0045	Plain	0.0455	82.8
20 × 20	0.0070	Plain	0.0430	74.0
20 × 20	0.0140	Plain	0.0360	51.8
25 × 25	0.0060	Plain	0.0190	57.80
26 × 26	0.0100	Plain	0.0285	54.8
30 × 30	0.0130	Plain	0.0203	37.2
40 × 40	0.0060	Plain	0.0190	57.8
40 × 40	0.0100	Plain	0.0150	36.0
50 × 50	0.0020	Plain	0.0180	81.0
60 × 60	0.0070	Plain	0.0097	33.6
60 × 60	0.0105	Twill	0.0062	13.7
60 × 60	0.010	Twill	0.0057	11.60
70 × 70	0.0040	Plain	0.0103	51.8
70 × 70	0.0045	Plain	0.0098	46.9
70 × 70	0.0080	Twill	0.0063	19.4
80 × 80	0.0055	Twill	0.0070	31.40
85 × 70	0.0060	Plain	0.0000	28.4
100 × 100	0.0020	Plain	0.0080	64.0
100 × 100	0.0040	Plain	0.0060	36.0
100 × 100	0.0045	Plain	0.0060	30.30
200 × 200	0.0018	Plain	0.0032	41.0

Specification of nickel wire mesh Grade Nickel 205:

Mesh count	Wire Diameter (in.)	Type Weave	Width Opening (in.)	Open Area (%)
60 × 60	0.0060	Plain	0.0107	41.0

Specification of nickel wire mesh Grade Nickel 270:

Mesh count	Wire Diameter (in.)	Type Weave	Width Opening (in.)	Open Area (%)
50 × 50	0.067	plain	0.0133	44.2
60 × 60	0.0040	Plain	0.0127	57.8
60 × 60	0.0060	Plain	0.0107	41.0
60 × 60	0.0070	Plain	0.0097	33.6
75 × 75	0.0060	Plain	0.0073	30.3

Note: Special size and specifications can be made according to customers requires.

Technology:

Specification of nickel wire mesh:

Material: nickel 200, nickel 205, nickel 270, N2, N4, N6, N8.

Weaving type: plain weave, twill weave and dutch weave.

Wire diameter: 0.0018" - 0.0280".

Mesh size: 8 mesh - 200 mesh.

Width: 36", 48".

Length: customized

Chemical Composition of Nickel wire mesh:

Grade	C%	Cu%	Fe%	Mn%	Ni%	S%	Si%	Co%	Cr%	Mg%	Ti%
Nickel 200	0.015	0.25	0.40	0.35	99.0	0.01	0.35	--	--	--	--
Nickel 205	0.02	0.001	0.005	0.001	99.97	0.001	0.001	0.001	0.001	0.001	0.001
Nickel 270	0.15	0.15	0.20	0.35	99.0	0.15	0.15	--	0.01-0.05	0.01-0.08

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	Fe	ImpuritySum
	Min	Max
N2	99.98	.001	.003	.002	.005	.003	.001	.007	.02
N4	99.9	.015	.03	.002	.01	.01	.001	.04	.1
N6	99.5	.06	.10	.05	.10	.10	.005	.10	.5
N8	99.0	.15	.15	.20	.20	.10	.015	.30	1.0

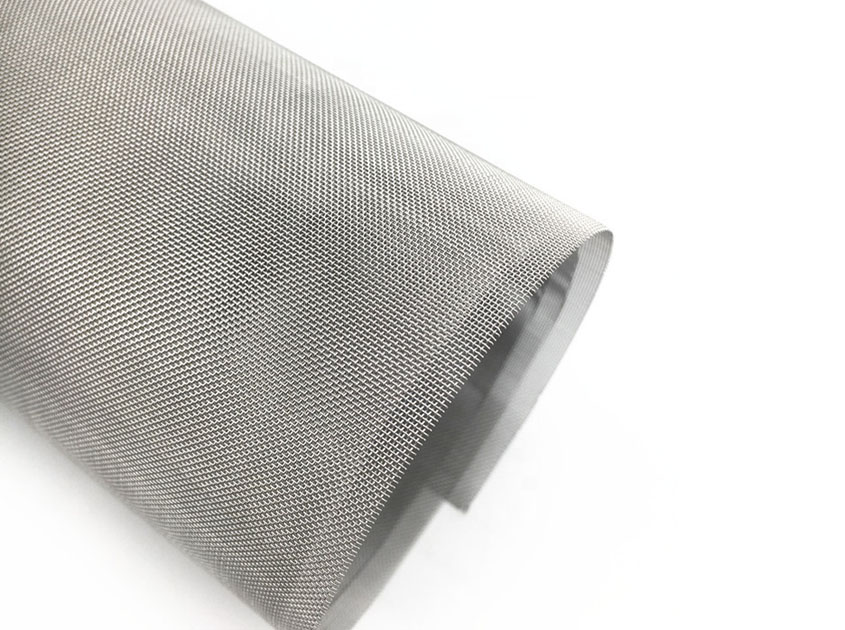

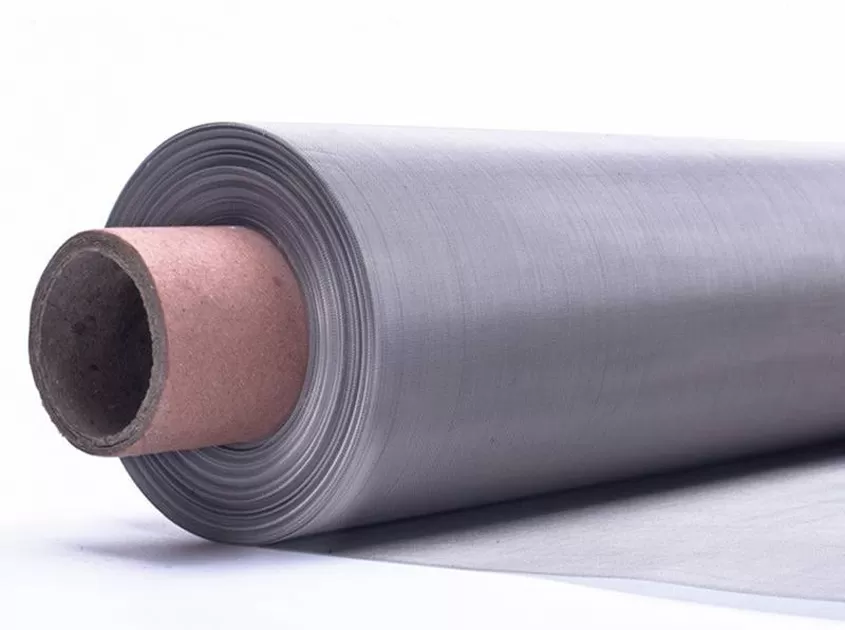

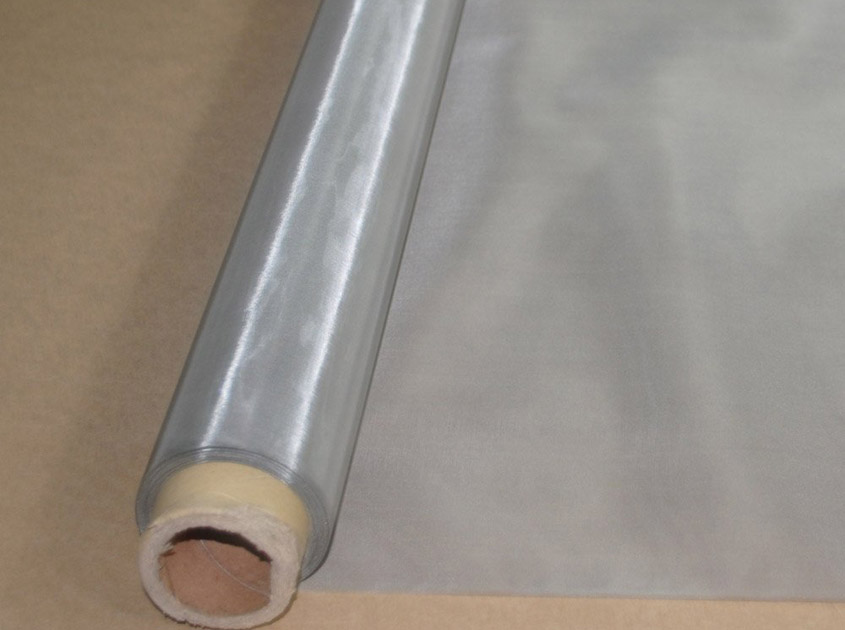

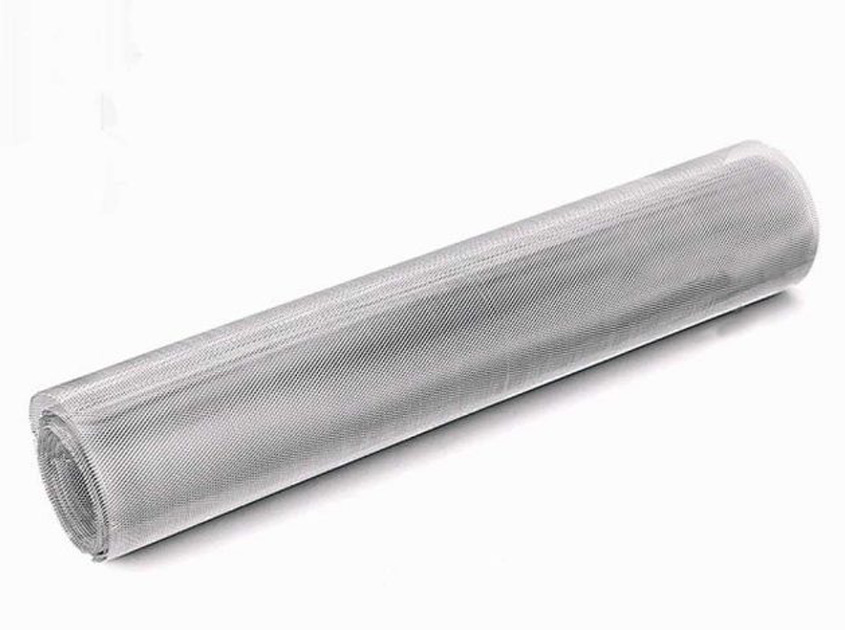

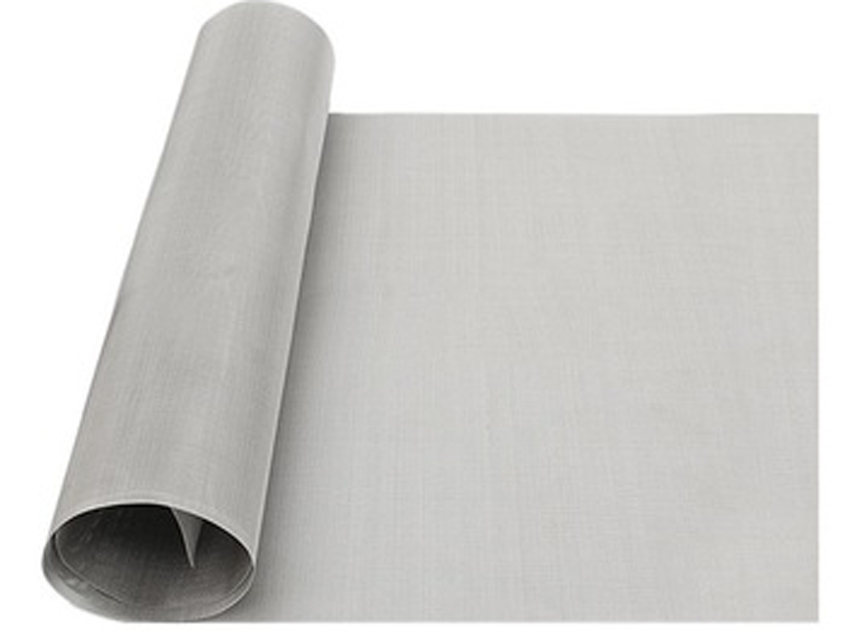

Drawing and Gallery:

Product Name: Pure Nickel Wire Mesh
