Introduction

Chain link wire mesh is one of the most widely used wire mesh products for fencing and security applications worldwide. It is manufactured by weaving galvanized steel wire, PVC coated wire, or stainless steel wire into a diamond-shaped mesh structure.

Known for its strength, flexibility, durability, and cost-effectiveness, chain link wire mesh provides practical solutions for residential fencing, industrial security, agricultural protection, sports facilities, and infrastructure projects.

Compared with other fencing materials, chain link wire mesh offers excellent visibility, easy installation, and customizable options. Buyers can select different wire diameters, mesh openings, heights, and surface treatments according to their specific project requirements.

This guide explains the main types, sizes, specifications, and applications of chain link wire mesh to help contractors, distributors, and project owners choose the right solution.

What Is Chain Link Wire Mesh?

Chain link wire mesh is a woven wire mesh product made by connecting steel wires together to form a diamond pattern.

Unlike welded wire mesh, where wires are connected by welding at each intersection, chain link mesh is created through a weaving process. This structure provides greater flexibility and allows the mesh to adapt to different installation environments.

The basic components of chain link wire mesh include:

• Wire material

• Wire diameter

• Mesh opening size

• Mesh height

• Surface coating

• Edge treatment

These factors determine the strength, durability, and suitable applications of the mesh.

Types of Chain Link Wire Mesh

Chain link wire mesh is available in several types depending on the material and surface treatment.

1. Galvanized Chain Link Wire Mesh

Galvanized chain link wire mesh is the most common type used for outdoor fencing.

The steel wire is coated with zinc to improve corrosion resistance and extend service life.

Advantages:

• Good rust resistance

• Long outdoor lifespan

• Low maintenance

• Cost-effective

Common Applications:

• Security fencing

• Industrial boundaries

• Agricultural fences

• Sports fields

• Construction sites

There are two main galvanizing methods:

Electro Galvanized Chain Link Mesh

Features:

• Smooth surface

• Lower zinc coating

• Economical option

Suitable for:

• Indoor applications

• Low corrosion environments

Hot Dipped Galvanized Chain Link Mesh

Features:

• Thicker zinc coating

• Better corrosion resistance

• Longer service life

Suitable for:

• Outdoor fencing

• Coastal areas

• Industrial projects

2. PVC Coated Chain Link Wire Mesh

PVC coated chain link mesh is produced by applying a protective PVC layer over galvanized steel wire.

The coating provides additional protection and improves appearance.

Advantages:

• Enhanced corrosion resistance

• Attractive appearance

• Multiple color options

• Better weather resistance

Common colors include:

• Green

• Black

• Brown

Applications:

• Residential fencing

• Parks

• Schools

• Gardens

• Sports facilities

3. Stainless Steel Chain Link Wire Mesh

Stainless steel chain link mesh is designed for environments requiring maximum corrosion resistance.

Common materials include:

• Stainless steel 304

• Stainless steel 316

Advantages:

• Excellent corrosion resistance

• High strength

• Long service life

• Suitable for harsh environments

Applications:

• Chemical facilities

• Marine projects

• Food processing plants

• Architectural applications

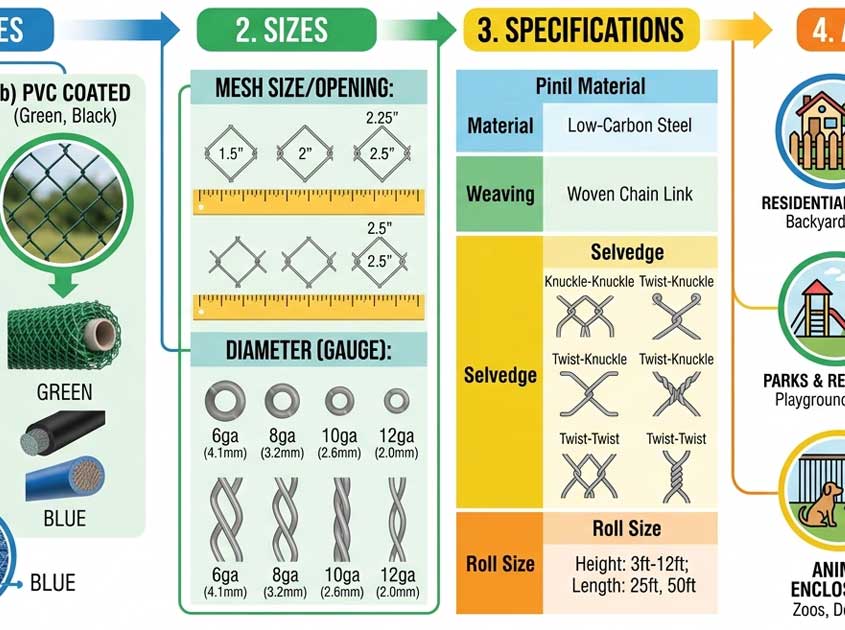

Chain Link Wire Mesh Sizes

Choosing the correct size is one of the most important factors when selecting chain link wire mesh.

The main size factors include:

• Mesh opening

• Wire diameter

• Height

• Roll length

Mesh Opening Size

Mesh opening refers to the distance between two adjacent wires.

Common mesh openings:

Smaller mesh openings provide higher security because they are more difficult to cut or climb.

Wire Diameter

Wire diameter determines the strength of chain link mesh.

Common wire diameters:

For security projects, thicker wire is normally recommended.

Height and Roll Length

Chain link wire mesh can be manufactured according to project requirements.

Common heights:

• 1 meter

• 1.2 meters

• 1.5 meters

• 1.8 meters

• 2 meters

• 2.4 meters

• 3 meters

Standard roll lengths:

• 10 meters

• 15 meters

• 20 meters

• 25 meters

• 30 meters

Custom dimensions are available for large projects.

Chain Link Wire Mesh Specifications Guide

Before purchasing chain link wire mesh, buyers should confirm the following specifications:

Applications of Chain Link Wire Mesh

Chain link wire mesh is widely used in different industries because it provides a practical balance between security, visibility, flexibility, and cost efficiency.

The right specification depends on the application environment, required protection level, and installation conditions.

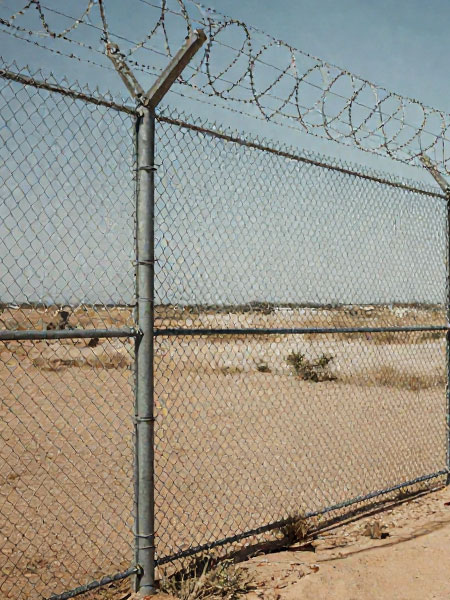

1. Security Fencing Applications

One of the most common uses of chain link wire mesh is security fencing.

Its strong woven structure creates an effective physical barrier while maintaining visibility, making it suitable for areas that require both protection and monitoring.

Common security applications include:

• Factories

• Warehouses

• Construction sites

• Power plants

• Storage facilities

• Industrial parks

For higher security requirements, chain link fencing can be combined with:

• Barbed wire

• Razor wire

• Security gates

• Additional reinforcement systems

A smaller mesh opening and thicker wire diameter are usually selected for high-security projects.

2. Agricultural and Livestock Applications

Chain link wire mesh is widely used in agricultural projects because it is durable, economical, and easy to install.

Common agricultural applications include:

• Farm boundaries

• Poultry areas

• Livestock enclosures

• Animal protection

• Garden fencing

For farms and ranches, galvanized chain link mesh is commonly preferred because it can withstand outdoor weather conditions and requires minimal maintenance.

The flexible structure also makes it suitable for large areas with uneven terrain.

3. Residential and Garden Fencing

Chain link wire mesh provides an affordable fencing solution for residential properties.

Typical applications include:

• Backyard fences

• Garden boundaries

• Swimming pool fences

• Property separation

PVC coated chain link mesh is often selected for residential projects because it offers:

• Better appearance

• Different color choices

• Additional corrosion protection

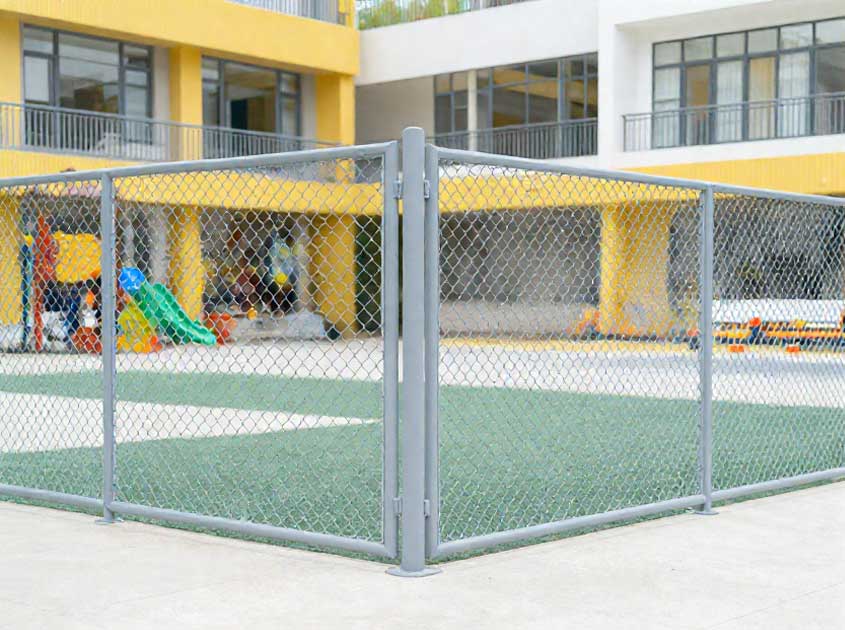

4. Sports Facilities

Due to its flexibility and visibility, chain link wire mesh is commonly used around sports facilities.

Applications include:

• Tennis courts

• Football fields

• Basketball courts

• Playgrounds

• Training areas

The open mesh structure allows spectators and security personnel to see through the fence while maintaining a safe boundary.

5. Transportation and Infrastructure Projects

Large infrastructure projects require reliable perimeter protection systems.

Chain link wire mesh is commonly used for:

• Airport perimeter fencing

• Railway protection

• Highway boundaries

• Public facilities

For these applications, high-quality galvanized wire and heavy-duty specifications are usually selected to ensure long-term performance.

6. Industrial and Commercial Applications

Many commercial and industrial facilities use chain link wire mesh because it offers effective protection with reasonable installation costs.

Typical applications include:

• Equipment protection areas

• Loading zones

• Parking areas

• Factory boundaries

• Logistics centers

The visibility of chain link fencing allows operators to monitor restricted areas without installing solid barriers.

Chain Link Wire Mesh vs Welded Wire Mesh

Chain link wire mesh and welded wire mesh are two common fencing solutions, but they have different characteristics.

Which One Should You Choose?

Choose chain link wire mesh when your project requires:

• Large area coverage

• Flexible installation

• Cost-effective fencing

• Fast construction

Choose welded wire mesh when your project requires:

• Rigid panels

• Modern appearance

• Higher resistance against impact

The best choice depends on the project requirements, environment, and budget.

How to Choose the Right Chain Link Wire Mesh?

Selecting the correct chain link wire mesh requires evaluating several factors.

1. Determine the Application Purpose

The first step is identifying where the mesh will be installed.

For example:

Residential Projects

Recommended:

• PVC coated chain link mesh

• Medium wire diameter

• Standard mesh opening

Industrial Security Projects

Recommended:

• Hot dipped galvanized coating

• Thicker wire diameter

• Smaller mesh opening

Agricultural Projects

Recommended:

• Galvanized wire mesh

• Larger mesh opening

• Durable construction

2. Select the Appropriate Wire Diameter

Wire diameter directly affects:

• Strength

• Security level

• Service life

• Cost

For general fencing:

• 2.5 mm - 3.0 mm wire

For heavy-duty security fencing:

• 3.5 mm - 5.0 mm wire

3. Choose the Correct Mesh Opening

The mesh opening should match the required protection level.

Smaller openings are recommended for:

• Security facilities

• Industrial areas

• High-value properties

Larger openings are suitable for:

• Agriculture

• General boundaries

• Large open areas

4. Consider Environmental Conditions

The installation environment affects coating selection.

For normal outdoor environments:

• Galvanized chain link mesh

For humid or coastal environments:

• Hot dipped galvanized mesh

• PVC coated mesh

• Stainless steel mesh

How to Import Chain Link Wire Mesh from China?

China is one of the major manufacturers and exporters of chain link wire mesh.

For international buyers, several factors should be considered before purchasing.

1. Confirm Product Specifications

Before requesting a quotation, buyers should provide:

• Mesh opening size

• Wire diameter

• Fence height

• Roll length

• Surface treatment

• Quantity required

Clear specifications help manufacturers provide accurate pricing.

2. Evaluate Manufacturer Capability

A reliable chain link wire mesh supplier should have:

• Professional production equipment

• Stable quality control

• Export experience

• Custom manufacturing capability

Buyers should check:

• Product samples

• Factory production capability

• Quality standards

• Previous export experience

3. Check Packaging and Shipping

Chain link wire mesh is normally supplied in rolls.

Export packing may include:

• Waterproof paper

• Plastic film

• Woven bags

• Pallets

Proper packaging helps prevent damage during transportation.

Why Choose Qunkun Metal for Chain Link Wire Mesh?

Qunkun Metal is a professional wire mesh manufacturer providing chain link wire mesh solutions for global customers.

Our products are widely supplied for:

• Fence contractors

• Construction companies

• Industrial projects

• Agricultural applications

• Distributors

Customized Manufacturing

We can supply chain link wire mesh according to different project requirements:

• Wire diameter

• Mesh opening

• Roll size

• Height

• Surface treatment

Quality Control

Our production process focuses on:

• Accurate mesh dimensions

• Strong wire weaving

• Reliable coating

• Consistent product quality

Export Experience

We understand international buyers’ requirements, including:

• Product specifications

• Export packaging

• Documentation

• Delivery arrangements

Frequently Asked Questions About Chain Link Wire Mesh

What materials are used for chain link wire mesh?

Chain link wire mesh is commonly manufactured using galvanized steel wire, PVC coated steel wire, or stainless steel wire.

What is the standard mesh size for chain link wire mesh?

Common mesh openings include 25 mm, 40 mm, 50 mm, 60 mm, 75 mm, and 100 mm. The best choice depends on the application and security requirements.

Is galvanized chain link wire mesh suitable for outdoor use?

Yes. Galvanized chain link wire mesh is widely used outdoors because the zinc coating helps protect the steel wire from corrosion.

What is the difference between chain link wire mesh and chain link fence?

Chain link wire mesh refers mainly to the woven mesh material itself, while chain link fence usually includes the complete fencing system, including:

• Mesh

• Posts

• Rails

• Gates

• Accessories

Can chain link wire mesh be customized?

Yes. Manufacturers can customize:

• Wire diameter

• Mesh opening

• Height

• Length

• Coating type

• Color

according to project requirements.

Conclusion

Chain link wire mesh is a versatile and reliable fencing material used in security, agriculture, residential, industrial, and infrastructure applications.

By selecting the correct type, size, wire diameter, and surface treatment, buyers can achieve the right balance between performance, durability, and cost.

For contractors, distributors, and project developers, working with an experienced chain link wire mesh manufacturer ensures consistent quality and customized solutions.

Qunkun Metal provides professional chain link wire mesh products with flexible specifications to meet the requirements of customers worldwide.
