How to Install a Chain Link Fence?

Chain link fences are a popular choice for homeowners looking to secure their property while maintaining visibility. With the right tools and a bit of know-how, installing a chain link fence can be a DIY project that saves you money. Of the many fencing options, chain link is among the most budget-friendly. It consists of a metal chain link fabric that attaches to a series of metal fence posts using special post hardware. Use this guide for step-by-step instructions on how to install a chain link fence.

Tools and Materials

Tools

Bucket

Come-along Winch

Mortar Hoe

Digging Bar

Drill / Driver and Bits

Materials

Concrete Mix

Brace Bands

Carriage Bolts with Nuts

Chain-link Fence Clips (Hog Rings)

Rail Ends (End Cups)

Follow these steps to install a chain link fence on your property.

1. Planning and Preparation

Before you begin, check with your local zoning laws to ensure you are allowed to install a fence on your property. Once you have the green light, measure the area where the fence will be installed. Purchase all the necessary materials, including chain link fabric, posts, rails, and hardware.

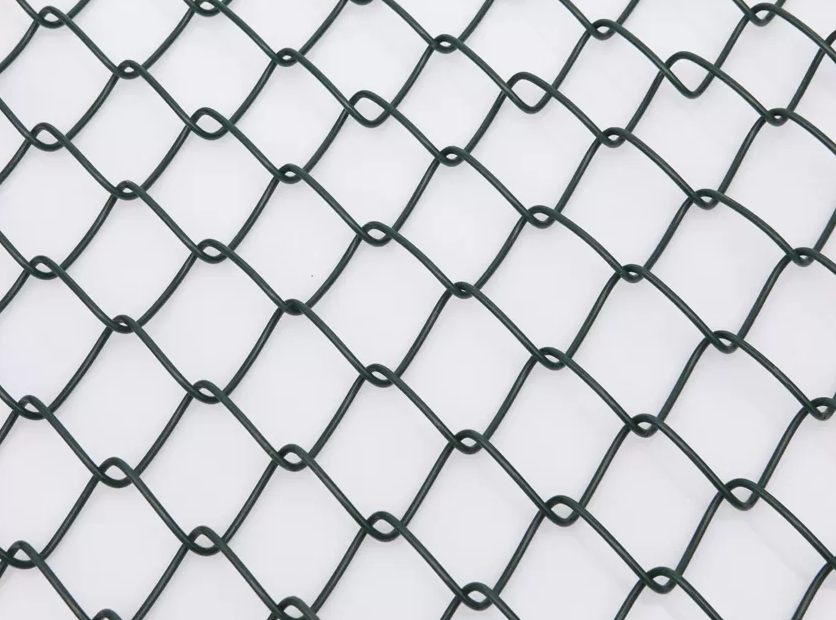

PVC Coated Chain Link Fence

2. Setting the Corner Posts

Start by setting the corner posts. Dig a hole for each corner post using a post hole digger. The holes should be at least 2 feet deep and 6 inches in diameter. Place the corner posts in the holes and fill them with concrete to secure them in place. Use a level to ensure the posts are plumb and level.

3. Installing the Line Posts

After the corner posts are set, it's time to install the line posts. Dig holes for the line posts spaced no more than 10 feet apart. Set the line posts in the holes and secure them with concrete. Use a string line to ensure the posts are in a straight line.

4. Attaching the Rails and Fittings

Once the posts are in place, you can begin attaching the rails. Slide the rails through the holes in the posts and secure them with fittings. Make sure the rails are level and the correct height. Use tension bands, brace bands, and bolts to connect the chain link fabric to the rails.

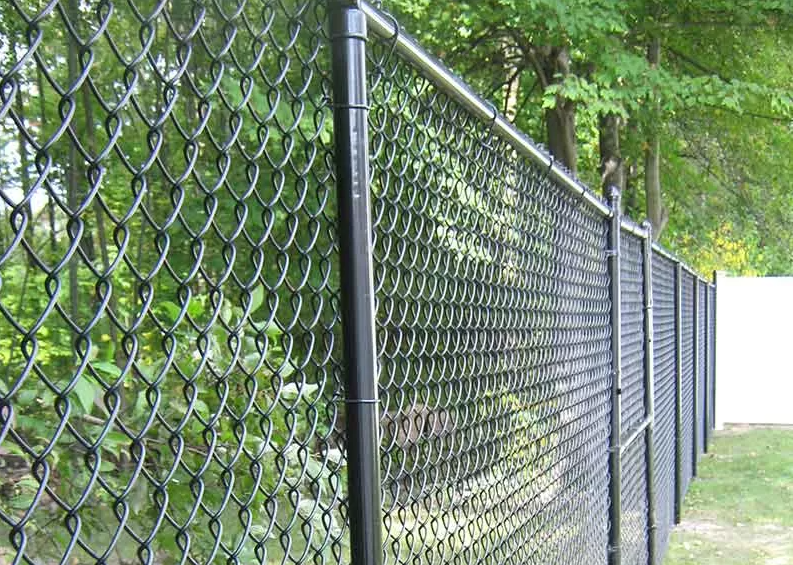

PVC Coated Chain Link Fence

5. Installing the Chain Link Fabric

Roll out the chain link fabric along the inside of the fence line. Use tension wire to secure the fabric to the top rail and bottom tension wire. Pull the fabric taut and attach it to the line posts with tension bands. Use a come-along tool to stretch the fabric tightly.

6. Attaching the Gate

If your fencing includes a gate, install it according to the manufacturer's instructions. Attach the gate to the gate posts using hinges and latch hardware. Make sure the gate swings freely and locks securely.

7. Finishing Touches

Once the fence is installed, add any finishing touches, such as post caps or rail end caps. Walk the perimeter of the fence to check for any loose fittings or fabric. Make any necessary adjustments before finishing up the project.

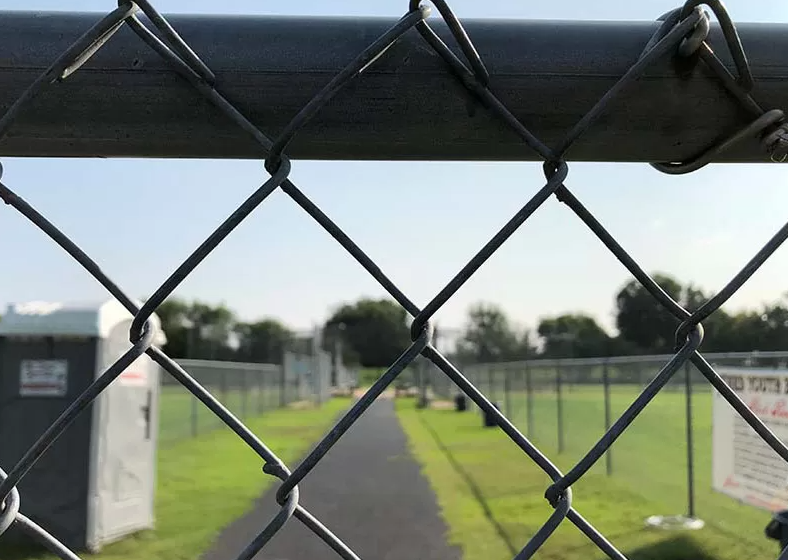

Vinyl Coated Chain Link Fence

Questions and Answers

Q: How long does it take to install a chain link fence?

A: The time it takes to install a chain link fence depends on the size of the area and the complexity of the project. On average, it can take anywhere from a few days to a week to complete the installation.

Q: Do I need any special tools to install a chain link fence?

A: While basic tools like a post hole digger, hammer, level, and wrenches are needed, no special tools are required. Renting or purchasing a come-along tool can make stretching the chain link fabric easier.

Q: Can I install a chain link fence by myself?

A: Yes, it is possible to install a chain link fence by yourself. However, having a helper to assist with lifting and positioning heavy materials can make the job easier and faster.

By following these steps and taking the time to properly install your chain link fence, you can create a secure and durable barrier that will enhance the look and value of your property.

Whether you need to secure a residential property, commercial establishment, or recreational area, QUNKUN METAL Chain Link Fencing provides reliable protection and peace of mind.
