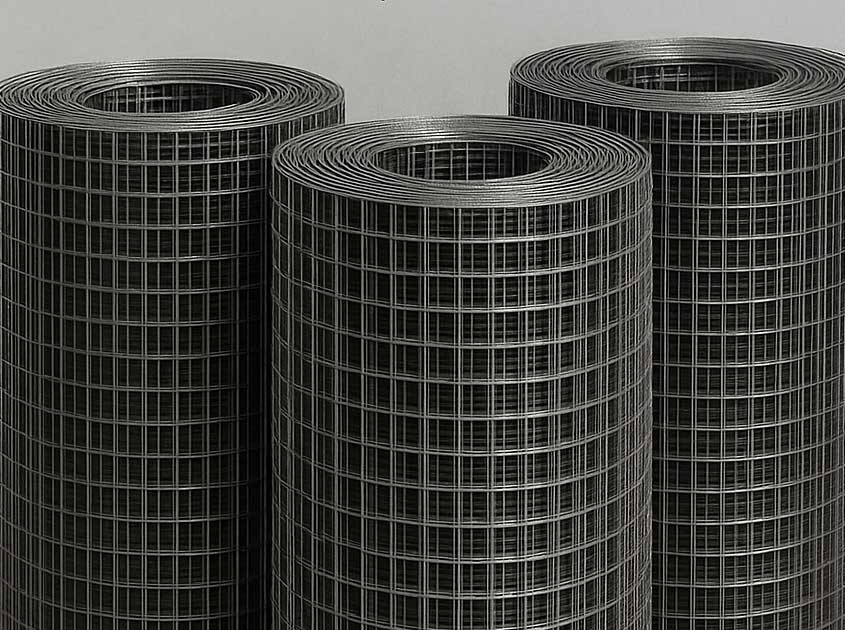

Welded Wire Mesh Roll | High-Performance Construction Reinforcement

Welded wire mesh rolls are the preferred choice for contractors, engineers, and distributors requiring reliable, high-strength reinforcement solutions. Our precision-welded mesh delivers exceptional structural performance while reducing labor costs - making it ideal for concrete projects, industrial fencing, and infrastructure development.

Key Benefits for B2B Buyers

 Structural Superiority

Robotic resistance welding (up to 1200N per intersection)

Low-carbon steel wire (Q195/Q235, 350-550MPa tensile strength)

±1mm dimensional tolerance for precise engineering

 Advanced Protection Options

Hot-dip galvanized (60-120g/m² zinc coating)

PVC coated (0.4-0.6mm) in green/black/yellow

Stainless steel 304/316 for corrosive environments

 Custom Configurations

Wire diameter: 2.0mm-6.0mm (12-8 gauge)

Mesh openings: 25mm×25mm to 200mm×200mm

Roll sizes: Standard 2.1m×30m or custom lengths

 Project Efficiency

30% faster installation vs loose rebar

Pre-cut rolls minimize jobsite waste

Compatible with all major concrete forms

Industry Applications

 Construction Reinforcement

Slab-on-grade foundations

Precast concrete elements

Shotcrete tunnel linings

 Infrastructure Projects

Bridge deck reinforcement

Highway barrier backing

Railway embankment stabilization

 Industrial Solutions

Warehouse partition systems

Machine safety guarding

Material storage cages

 Agricultural Uses

Poultry house flooring

Greenhouse structural support

Livestock enclosure fencing

B2B Value Proposition

 Container-load optimization (20-25 tons/40HQ)

 MOQ 5,000m² with volume discounts

 Complete documentation (mill certs, test reports)

 Just-in-time delivery for large projects

 Technical support from civil engineers
